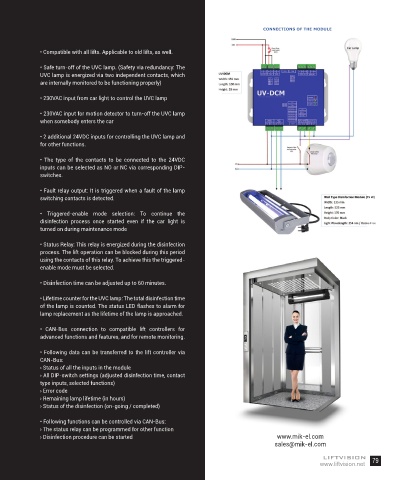

• Compatible with all lifts. Applicable to old lifts, as well.

• Safe turn-off of the UVC lamp. (Safety via redundancy: The
UVC lamp is energized via two independent contacts, which
are internally monitored to be functioning properly)

• 230VAC input from car light to control the UVC lamp

• 230VAC input for motion detector to turn-off the UVC lamp
when somebody enters the car

• 2 additional 24VDC inputs for controlling the UVC lamp and
for other functions.

• The type of the contacts to be connected to the 24VDC
inputs can be selected as NO or NC via corresponding DIP-
switches.

• Fault relay output: It is triggered when a fault of the lamp
switching contacts is detected.

• Triggered-enable mode selection: To continue the
disinfection process once started even if the car light is
turned on during maintenance mode

• Status Relay: This relay is energized during the disinfection
process. The lift operation can be blocked during this period
using the contacts of this relay. To achieve this the triggered-
enable mode must be selected.

• Disinfection time can be adjusted up to 60 minutes.

• Lifetime counter for the UVC lamp: The total disinfection time
of the lamp is counted. The status LED flashes to alarm for
lamp replacement as the lifetime of the lamp is approached.

• CAN-Bus connection to compatible lift controllers for
advanced functions and features, and for remote monitoring.

• Following data can be transferred to the lift controller via
CAN-Bus:
› Status of all the inputs in the module
› All DIP-switch settings (adjusted disinfection time, contact
type inputs, selected functions)
› Error code
› Remaining lamp lifetime (in hours)
› Status of the disinfection (on-going / completed)

• Following functions can be controlled via CAN-Bus:
› The status relay can be programmed for other function
› Disinfection procedure can be started www.mik-el.com
